This all-new GM 1500 features a dramatic change that started from the ground up with the most dynamic styling and angles of any GM 1500 pickup truck has ever seen. Take this all-new GM 1500 to a completely new height with Superlift’s easiest installed suspension kit today. The 6-inch lift kit for the all-new GM 1500 is simple yet compliments the most dynamic styling change GM has ever put into their 1500 models.
This 6-inch suspension lift kit has a strong, modern die-formed design made with the strongest materials to give you a suspension kit that can withstand the most challenging terrain. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability, along with bonus features and add-ons that others competitors do no offer. This kit is available with Superlift Shocks or Bilstein 5100 series Shocks or Fox® 2.0 Shocks.

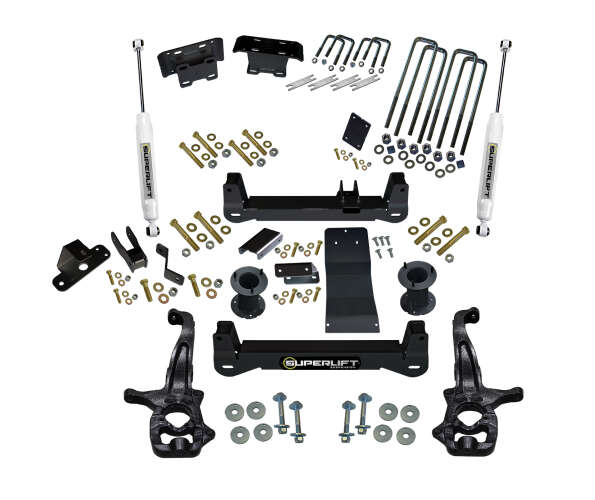

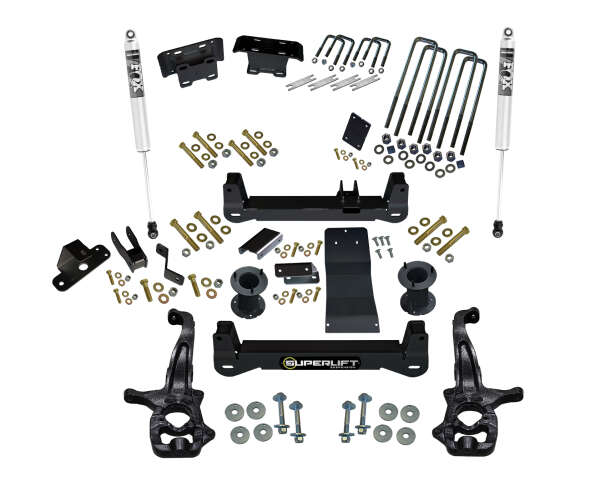

This kit includes front knuckles, front strut spacers, ¼” plate steel control arm cross-members, differential drops, differential skid plate, fabricated rear blocks, U-bolts, and rear shocks. All required parts are included to make sure your Chevrolet Silverado or GMC Sierra handles and performs in all conditions.
Features:
- Designed using Original Equipment (OE) CAD data
- Differential does not have to be cut
- Retains stock track width
- Clearance up to a 35” tire
- Cross-members constructed out of ¼” plate steel
- Rear Shocks options: Superlift or Bilstein or Fox
- Corrects Front to Rear factory rake for a more level stance
- Anti-Wrap Fabricated Rear blocks and U-bolts for rear lift
- Grade 8 Hardware
- Backed by our Limited Lifetime Warranty
Benefits:
- Retains OEM alignment specifications
- No excessive ball joint or steering components
- CV axle angles are in the stock parameters
- Maintains OEM like ride quality and handling characteristics
Notes:
- Does not Fit with Factory Wheels
- 20 inch or larger aftermarket wheels are required w/ 4.5” of back spacing
- Requires cutting and drilling
- Does not fit Trail Boss Edition or GMC AT4
- Does not work with GM 1500 Models that include adaptive Ride Control
- Some minor trimming may be required in order to clear tires larger than 35”
- Do Not combine with any other suspension lift
- Due to GM’s larger Front Brake set up on the 2019-2024 models, check with the aftermarket wheel manufacturer for wheel compatibility. It is highly recommended that all tire and wheel combinations should be test fitted prior to installation
